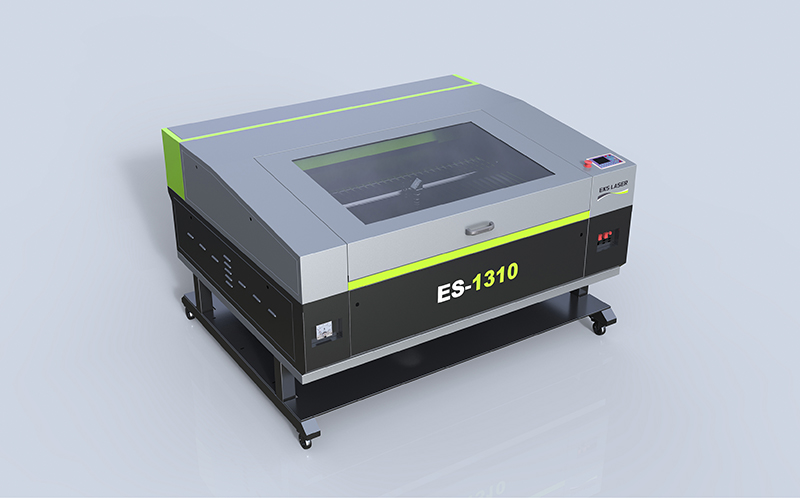

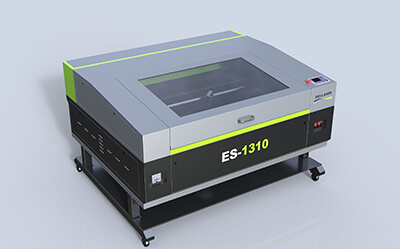

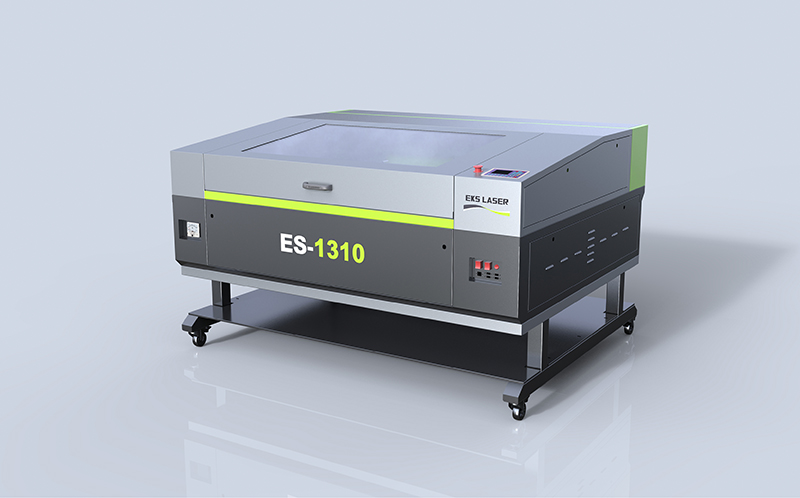

Small size high precision laser engraver

New Construction

Holder Leg's Thickness

achieved 3 mm, don't worry about bends
( Normally others used 1.5mm)

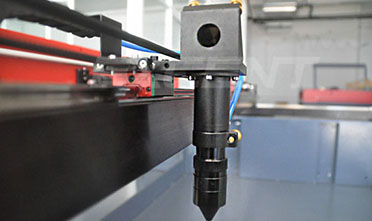

New laser head, suitable for 3 different focus distant(38.1mm,63.5mm,100mm wtih one laser head) .Don't need to prepare another laser headany more.

All cables imported from Germany. Flexibility is excellent,not easy to break off.

Ballscrew for up and down table.

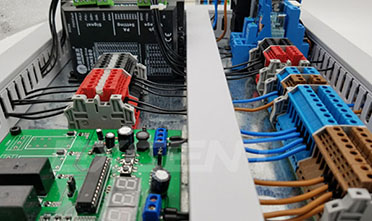

All teminal and block is German standard.

All power supply have been tested. More than
110% power make sure its stablity.

New wheels, More than 150 kg can be bearing.

All the laser tubes will be tested twice before delivery.

All the Modules have been check twice during installtion.

Hot Search

The specialty is engaged in fiber & CO2 laser cutting equipment research and development, production and sales.

Contact

Max +181702091149 Jashon +8618255368660

0555-8286688

Hangkong Road, Xiancheng Industrial Park, Xiannv Town, Jiangdu District, Yangzhou City, China.

Engraving area	1300*1000mm	Gross power	1200W
Engraving speed	0-64000mm/min	Operating temperature	0-45
laser power	80w/100w/120w/150w	Operating humidity	5%-95%
Resolution ratio	0.025mm	Graphic format supported	BMP,GIF,JPEG,PCX,TGA, TIFF,PLT,CDR,DWG,DXF
Minimum shaping character	1mm for letter,2mm for Chinese	Graphic format supported	BMP,GIF,JPEG,PCX,TGA, TIFF,PLT,CDR,DWG,DXF
Resseting positioning accuracy	0.01mm	Power supply	220V+-10%,50HZ/60HZ

Engraving area	1300*1000mm	Gross power	1200W
Engraving speed	0-64000mm/min	Operating temperature	0-45
laser power	80w/100w/120w/150w	Operating humidity	5%-95%
Resolution ratio	0.025mm	Graphic format supported	BMP,GIF,JPEG,PCX,TGA, TIFF,PLT,CDR,DWG,DXF
Minimum shaping character	1mm for letter,2mm for Chinese	Graphic format supported	BMP,GIF,JPEG,PCX,TGA, TIFF,PLT,CDR,DWG,DXF
Resseting positioning accuracy	0.01mm	Power supply	220V+-10%,50HZ/60HZ
