ESF-3015C
EKS Laser
8456110090
3000*1500mm
NO
NO
1-8mm (750W)
ESF-3015GE-1000W fiber laser cutting machine, the maximum cutting size of ESF-3015GE is 3000mm*1500mm. Both the cutting seam and the thermal effect are very small, which is especially suitable for the processing of the sheet metal.
Machine Configuration

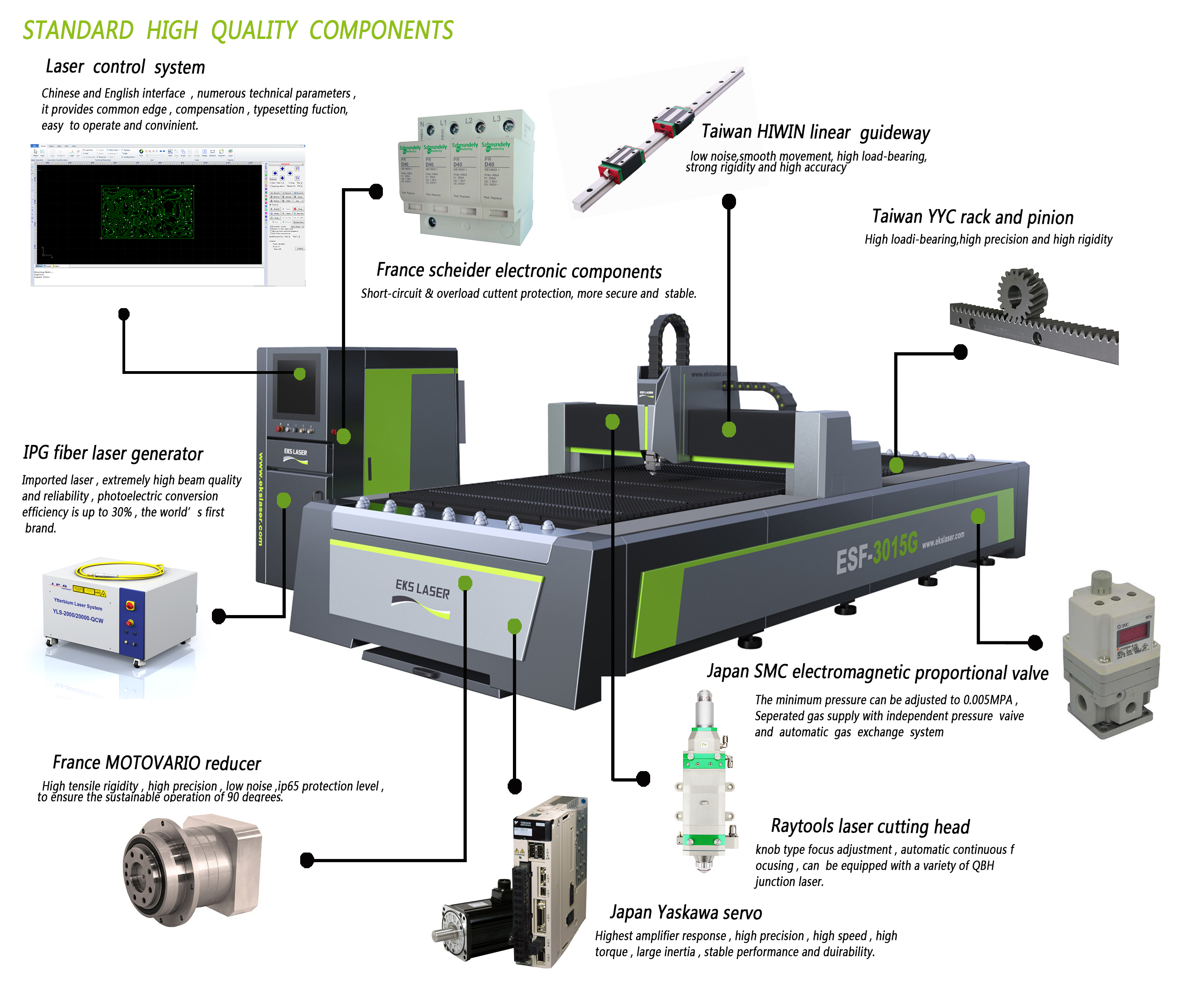

IPG Fiber laser source
IPG is one of the best laser sources in the world.
It's more stable and widely used in various fields.
High precision,with brighter and smoother cutting surface, the kerf is smaller.

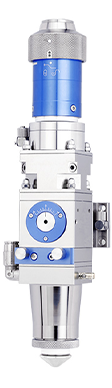

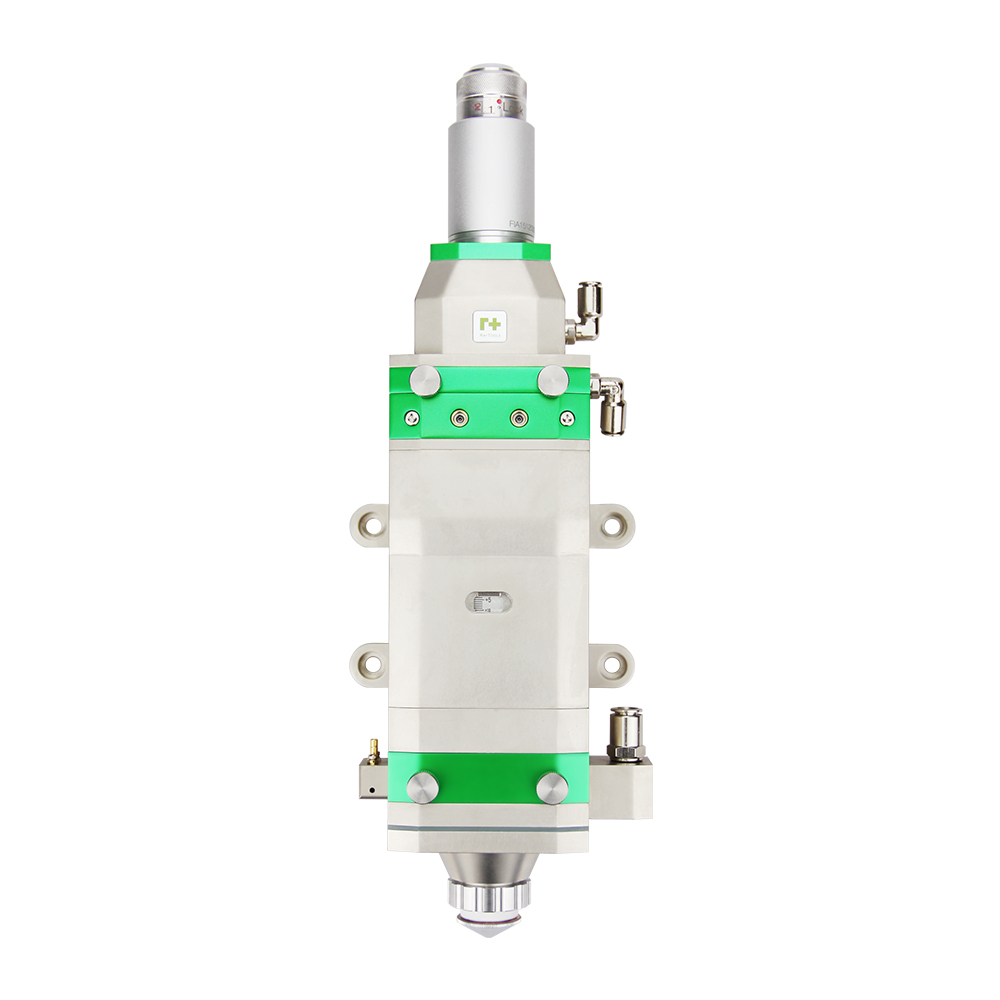

Switzerland RAYTOOLS laser cutting head optimization of the optical configuration,smooth and efficient air flow design, rotary knob focus adjustment, Much easier , more flexible,stable,advanced and top quality | WSX Laser Cutting Head Two points centering adjustment, focusing using cam structure, can be equipped with a variety of QBH junction laser. |
Machine bed: Annealing for 15 hours(650℃), Secondary processing by CNC machining center,more than 4500KG, suitable for 1000~4000W laser source, Maximum 1.6G acceleration
Air conditioner can make sure all components can work steadily in hostile environment. | Separated design of socket, easier to install and maintain. |
Separated type control cabinet | Reduce the impact of vibrations from working machine. |
International Standard Circuits board

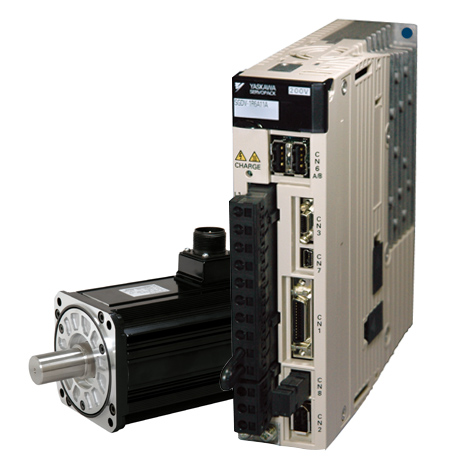

France SCHNEIDER electronic component | Japan YASKAWA servo motor, the highest amplifier responsiveness,100m/minute |
Deslagging system:
The movable tray under the machine tool could collect the scraps and small product during cutting process.
Auto oil filling for rail and gear rack
Professional Cypcut Control system(FSCut 2000)
Cypcut is powerful, simple to operate, compatible with DXF, PLT, AI, NC-MASTER format and etc.
Separated control unit with air conditioner, which can keep a suitable working temperature for laser source and electric parts inside.
Factory Sightseeing
Cutting Samples
Customer Reference
ESF-3015GE-1000W fiber laser cutting machine, the maximum cutting size of ESF-3015GE is 3000mm*1500mm. Both the cutting seam and the thermal effect are very small, which is especially suitable for the processing of the sheet metal.
Machine Configuration
IPG Fiber laser source
IPG is one of the best laser sources in the world.
It's more stable and widely used in various fields.
High precision,with brighter and smoother cutting surface, the kerf is smaller.
Switzerland RAYTOOLS laser cutting head optimization of the optical configuration,smooth and efficient air flow design, rotary knob focus adjustment, Much easier , more flexible,stable,advanced and top quality | WSX Laser Cutting Head Two points centering adjustment, focusing using cam structure, can be equipped with a variety of QBH junction laser. |
Machine bed: Annealing for 15 hours(650℃), Secondary processing by CNC machining center,more than 4500KG, suitable for 1000~4000W laser source, Maximum 1.6G acceleration
Air conditioner can make sure all components can work steadily in hostile environment. | Separated design of socket, easier to install and maintain. |
Separated type control cabinet | Reduce the impact of vibrations from working machine. |
International Standard Circuits board
France SCHNEIDER electronic component | Japan YASKAWA servo motor, the highest amplifier responsiveness,100m/minute |
Deslagging system:
The movable tray under the machine tool could collect the scraps and small product during cutting process.
Auto oil filling for rail and gear rack
Professional Cypcut Control system(FSCut 2000)
Cypcut is powerful, simple to operate, compatible with DXF, PLT, AI, NC-MASTER format and etc.
Separated control unit with air conditioner, which can keep a suitable working temperature for laser source and electric parts inside.
Factory Sightseeing
Cutting Samples
Customer Reference
List of Components
Item | Name | QTY | Brand |
1 | Laser | ||
1) | Fiber Laser | 1set | IPG |
2 | Laser Cutting Head | 1 | EKS laser |
1) | Fiber-optical Laser Cutting Head | 1set | Raytools/WSX |
3 | Control System | ||
1) | Fiber Control System | 1set | Cypcut 2000 |
4 | Machine Tool | ||
1) | Machine tool bed | 1set | EKS laser |
2) | Gear of X and Y axis(1.5kw & 2.0kw) | 1 set | YYC |
3) | Lead rail of X, Y and Z axis | 1 set | HIWIN |
4) | Ball screw of Z axis | 1set | HIWIN |
5) | Servo motor and driver of X and Y axis | 3sets | YASKAWA |
6) | Reduction box | 1set | French Motovario |
7) | Pneumatic system | 1 set | Japan SMC |
8) | Control cabinet | 1set | |
9) | Accessories | 1 set | EKS laser |
5 | Cooling System | ||
1) | Water cooling system | 1 set | Tongfei |
6 | Standard auxiliary component | ||
1) | Movable tray | 1 set | EKS laser |
2) | Exhaust fan | 1 set | 3kw |
3) | 1 set | EKS laser |
Model Type | ESF-3015G | ESF-4015G | ESF-4020G | ESF-6015G | ESF-6020G |
Laser Generator | IPG/Raycus | ||||
Working area | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm |
Laser power | 1000w/1500w/2000w/3000w/4000w | ||||
Max. speed | 0-100/min(Depending on the material and thickness) | ||||
Positioning accuracy | ±0.03mm | ||||
Repeat positioning accuracy | ±0.02mm | ||||
X-axis travel | 1500mm/2000mm | ||||
Y-axis travel | 3000mm/4000mm/6000mm | ||||
Z-axis travel | 100mm | ||||
Acceleration | 1.4G-1.6G | ||||
Transmission | Taiwan high precision gear rack +high precision linear guide rail | ||||
Power supply | 380V/50Hz~60Hz | ||||
Machine weight | 5000kgs/6000kgs/6500kgs/ |
List of Components
Item | Name | QTY | Brand |
1 | Laser | ||
1) | Fiber Laser | 1set | IPG |
2 | Laser Cutting Head | 1 | EKS laser |
1) | Fiber-optical Laser Cutting Head | 1set | Raytools/WSX |
3 | Control System | ||
1) | Fiber Control System | 1set | Cypcut 2000 |
4 | Machine Tool | ||
1) | Machine tool bed | 1set | EKS laser |
2) | Gear of X and Y axis(1.5kw & 2.0kw) | 1 set | YYC |
3) | Lead rail of X, Y and Z axis | 1 set | HIWIN |
4) | Ball screw of Z axis | 1set | HIWIN |
5) | Servo motor and driver of X and Y axis | 3sets | YASKAWA |
6) | Reduction box | 1set | French Motovario |
7) | Pneumatic system | 1 set | Japan SMC |
8) | Control cabinet | 1set | |
9) | Accessories | 1 set | EKS laser |
5 | Cooling System | ||
1) | Water cooling system | 1 set | Tongfei |
6 | Standard auxiliary component | ||
1) | Movable tray | 1 set | EKS laser |
2) | Exhaust fan | 1 set | 3kw |
3) | 1 set | EKS laser |
Model Type | ESF-3015G | ESF-4015G | ESF-4020G | ESF-6015G | ESF-6020G |
Laser Generator | IPG/Raycus | ||||
Working area | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm |
Laser power | 1000w/1500w/2000w/3000w/4000w | ||||
Max. speed | 0-100/min(Depending on the material and thickness) | ||||
Positioning accuracy | ±0.03mm | ||||
Repeat positioning accuracy | ±0.02mm | ||||
X-axis travel | 1500mm/2000mm | ||||
Y-axis travel | 3000mm/4000mm/6000mm | ||||
Z-axis travel | 100mm | ||||
Acceleration | 1.4G-1.6G | ||||
Transmission | Taiwan high precision gear rack +high precision linear guide rail | ||||
Power supply | 380V/50Hz~60Hz | ||||
Machine weight | 5000kgs/6000kgs/6500kgs/ |
Working Cost( Only for reference)
Electricity cost (3000W) | |||||||
Name | power(kW) | electricity | real consumption | ||||
laser source | 7.5 | ≤21.2 | 21.2x0.8x0.15=2.54USD | ||||
cutting bed | 8.5 | (use 80% power for cutting,0.12USD/1kw) | |||||
chiller | 3 | ||||||
exhaust fan | 2.2 | ||||||
Gas consumption cost | |||||||
type | price (USD/bottle) | life(min/bottle) | total(USD/hour) | Remark | |||
O2 | 2.3 | 60 | 2.3 | 1mm carbon steel | |||
N2 | 3.85 | 15 | 15.38 | 1mm stainless | |||
liquid N2 | 49.23(mid) | 720 | 4.11 | 1mm stainless | |||
Air | 0 | 0 | 1.02(electronic) | below 2mm | |||
consumable spare parts cost | |||||||
consumable | life(hour) | Price(USD) | total (USD/hour) | Remark | |||
Protective lens' | ≥240 | 15.38 | 0.06USD/hour | The better the environment, the longer the working life | |||
Copper nozzle | ≥600 | 23.08 | 0.04USD/hour | very difficult | |||
Ceramic ring | ≥1500 | 76.92 | 0.05USD/hour | ||||
Total | 0.15USD/hour |
Technical parameters
Laser output power | 3000W |
Laser wavelength | 1070 nm |
Laser medium | Glass fiber with rate-earth element,brand IPG |
Laser beam quality | <0.373mrad |
Min. beam width | ≤0.125mm |
Working area | 3000mm×1500 mm |
Axial accuracy | ≤±0.05mm/m |
Repeated accuracy | ≤±0.03mm/m |
Max. thickness of cutting carbon steel | 25mm (Optimum thickness 0.5--12mm) |
Max. thickness of cutting Stainless Steel | 12mm (Optimum thickness 0.5--8mm) |
Power supply | 380V/50HZ |
The Period of Continuous Working | 24 hours |
Weight of main Machine | |
Outline Size | 4700mm*2400mm*2200mm |
Working Cost( Only for reference)
Electricity cost (3000W) | |||||||
Name | power(kW) | electricity | real consumption | ||||
laser source | 7.5 | ≤21.2 | 21.2x0.8x0.15=2.54USD | ||||
cutting bed | 8.5 | (use 80% power for cutting,0.12USD/1kw) | |||||
chiller | 3 | ||||||
exhaust fan | 2.2 | ||||||
Gas consumption cost | |||||||
type | price (USD/bottle) | life(min/bottle) | total(USD/hour) | Remark | |||
O2 | 2.3 | 60 | 2.3 | 1mm carbon steel | |||
N2 | 3.85 | 15 | 15.38 | 1mm stainless | |||
liquid N2 | 49.23(mid) | 720 | 4.11 | 1mm stainless | |||
Air | 0 | 0 | 1.02(electronic) | below 2mm | |||
consumable spare parts cost | |||||||
consumable | life(hour) | Price(USD) | total (USD/hour) | Remark | |||
Protective lens' | ≥240 | 15.38 | 0.06USD/hour | The better the environment, the longer the working life | |||
Copper nozzle | ≥600 | 23.08 | 0.04USD/hour | very difficult | |||
Ceramic ring | ≥1500 | 76.92 | 0.05USD/hour | ||||
Total | 0.15USD/hour |
Technical parameters
Laser output power | 3000W |
Laser wavelength | 1070 nm |
Laser medium | Glass fiber with rate-earth element,brand IPG |
Laser beam quality | <0.373mrad |
Min. beam width | ≤0.125mm |
Working area | 3000mm×1500 mm |
Axial accuracy | ≤±0.05mm/m |
Repeated accuracy | ≤±0.03mm/m |
Max. thickness of cutting carbon steel | 25mm (Optimum thickness 0.5--12mm) |
Max. thickness of cutting Stainless Steel | 12mm (Optimum thickness 0.5--8mm) |
Power supply | 380V/50HZ |
The Period of Continuous Working | 24 hours |
Weight of main Machine | |
Outline Size | 4700mm*2400mm*2200mm |
Packing Procedures.
Layout Drawing
Packing Procedures.
Layout Drawing
Factory Show
Customer Feedback
